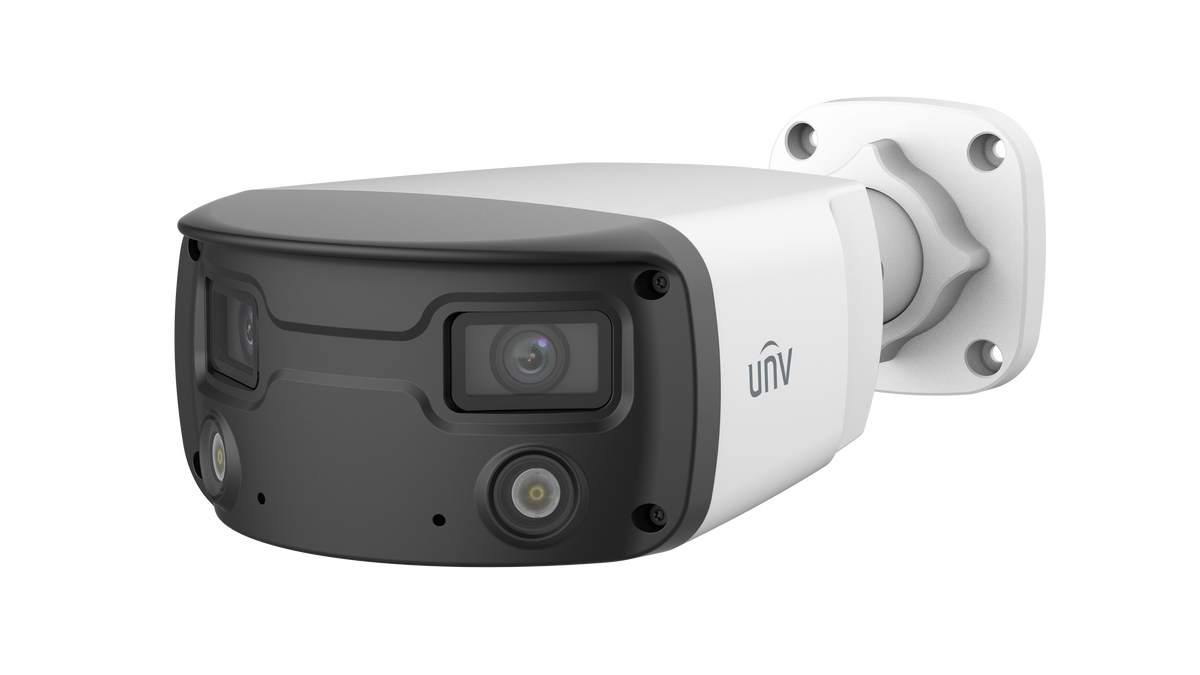

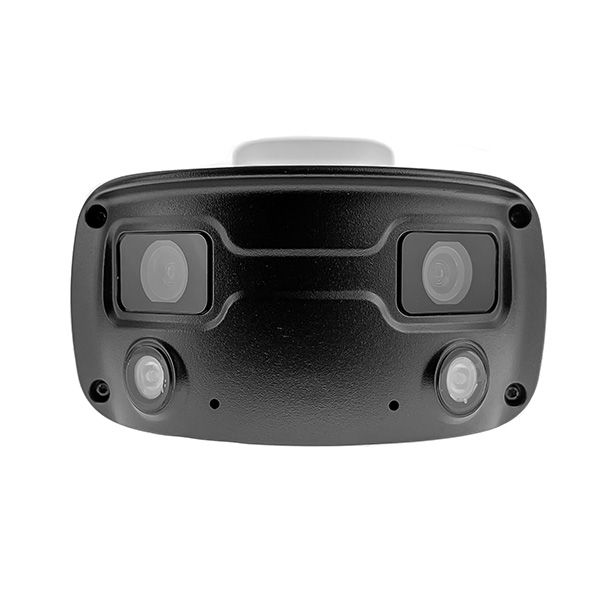

Uniview 4K Panoramic Bullet Camera | IPC2K28SE-ADF40KMC-WL-I0

Cover a broad area from one camera position. The wide view is useful for seeing activity across entrances, open spaces and approaches without constantly changing the camera angle.

Key features

• Horizontal field of view: 180°±10°.
• Night lighting: built-in warm light helps retain color detail in dark scenes, up to 30 m (98 ft).
• Audio: built-in dual microphones.
• Two-way communication: supported with the built-in microphone and speaker.
• 5120 × 1440 panoramic video, up to 20 fps.
• Human and vehicle classification for supported intrusion events.
• 130 dB wide dynamic range helps balance bright and shaded areas.
• IP67 weather protection and IEEE 802.3af PoE power.
• Onboard storage: microSD card up to 512GB (card not included).

Model: IPC2K28SE-ADF40KMC-WL-I0. Check recorder compatibility, mounting position and power requirements before ordering. Published illumination distances describe lighting reach, not guaranteed identification distance.

Power requirements

• Maximum power consumption: 13 W.
• Power input: DC 12 V±25%, PoE (IEEE 802.3af).

Check the required PoE standard, the power available at each port, and the total recorder or switch PoE budget. Allow headroom for cable losses and other connected devices.

Manufacturer power specifications

Download manufacturer datasheet (PDF)
