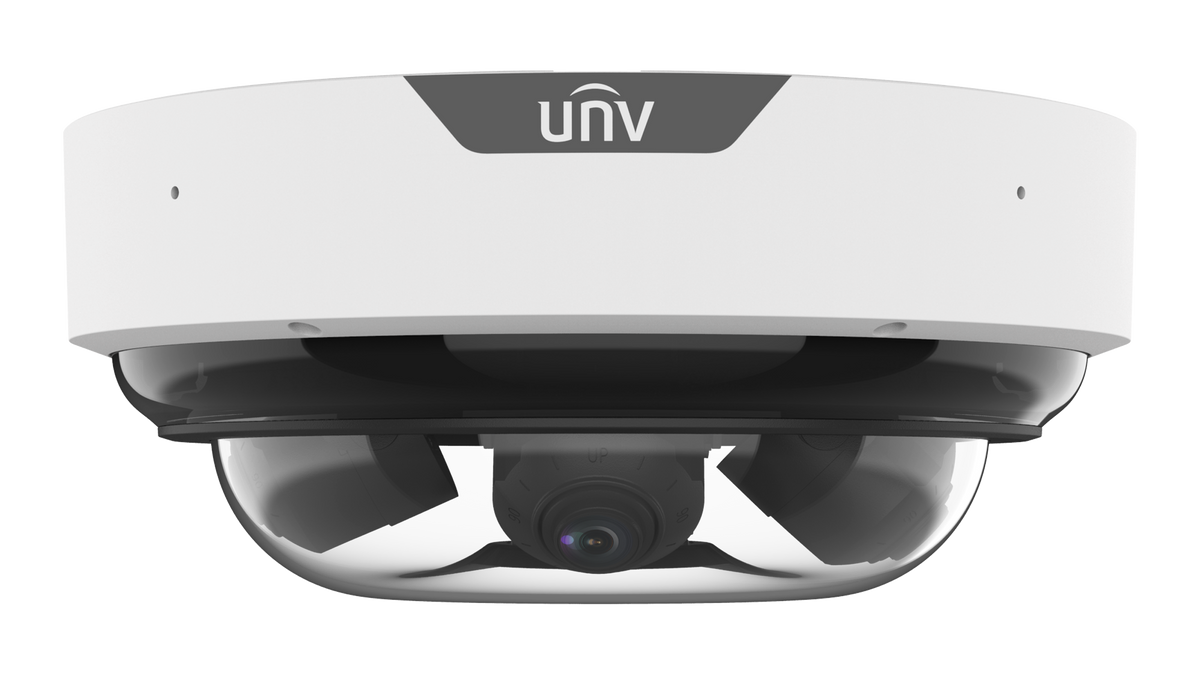

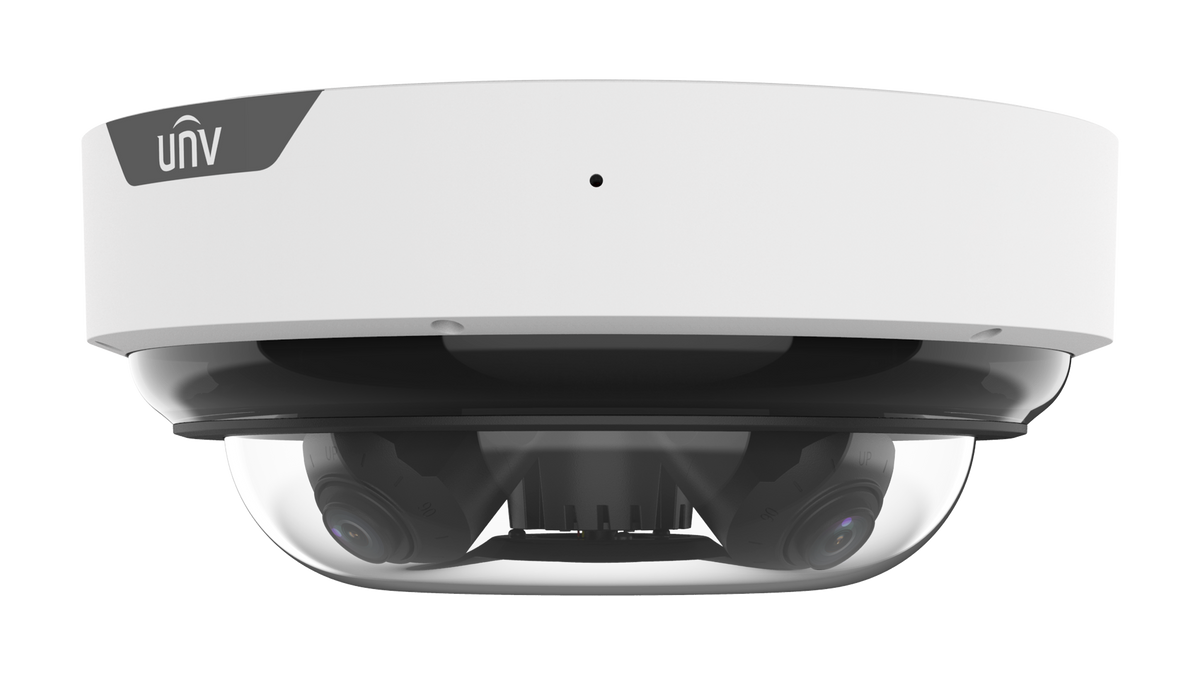

Uniview 20MP Four-Sensor Camera | IPC8645EA-ADZKM-I1

Cover several directions from one mounting location. Four independently adjustable lenses let you frame entrances, aisles, or different sides of a property while using one network connection.

Key features

• Four 5MP views (20MP combined), up to 30 fps per channel. Each lens is independently aimed during installation.
• 2.7–13.5mm motorized varifocal lenses, 5x optical zoom; horizontal field of view 110.3°–31° per lens.
• Infrared night illumination up to 164 feet; low-light imaging and 130dB WDR for difficult lighting.
• Human/vehicle classification, intrusion and line-crossing detection, plus people counting.
• Built-in microphone; audio input/output and two-way audio support. Talk-back requires suitable external audio equipment.
• MicroSD support up to 512GB; card sold separately.
• IP67 weather protection and IK10 impact resistance.
• Maximum power: 31W. Requires IEEE 802.3bt PoE, or compatible 24V AC/DC power. Standard PoE/PoE+ ports are not sufficient.

Plan your recorder and mounting

Uses four recording channels through one IP address. No mounting bracket is included; mounting hardware is required and sold separately.

Manufacturer-listed mounting options:

• TR-CE45-IN — Ceiling mount
• TR-WE45-A-IN — Long wall mount
• TR-WE45-B-IN — Gooseneck mount
• TR-UP08-A-IN — Pole adapter
• TR-UP08-B-IN — Aluminum pole adapter
• TR-UC08-A-IN — Corner adapter
• TR-UC08-B-IN — Aluminum corner adapter
• TR-UF45-K-IN — Ceiling/wall mounting adapter

Pole and corner adapters may require a wall bracket and camera adapter as a complete assembly. Confirm the mounting combination before ordering; unpriced options are available by inquiry.

Downloads

Manufacturer datasheet (PDF)
