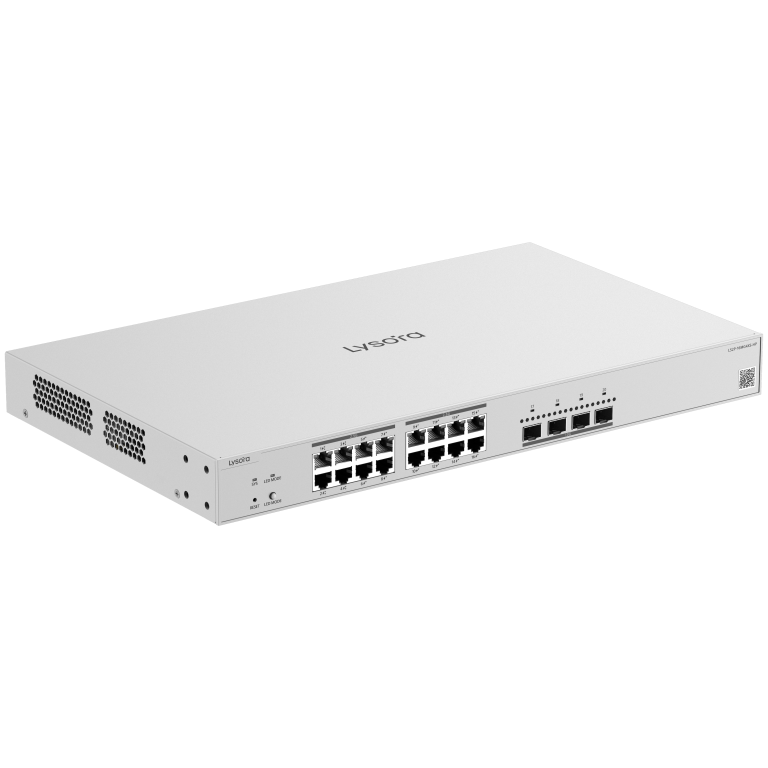

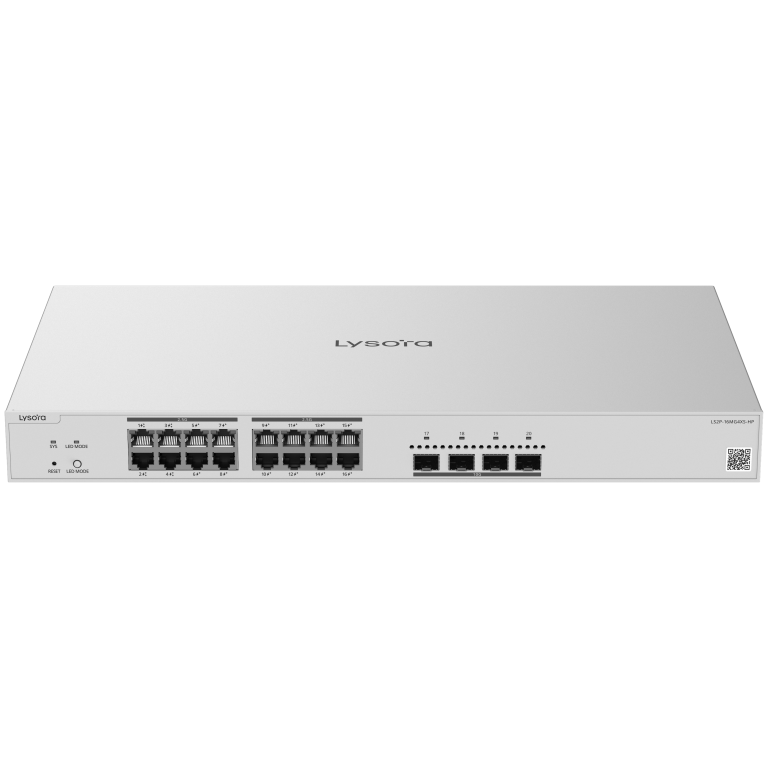

Lysora LS2P-16MG4XS-HP | 16-Port (2.5G) Layer 2+ Managed PoE Switch with 370 W PoE Budget

Connect your cameras and network equipment through one managed switch. Match the port speeds and power requirements to your devices, with uplink options for connecting the rest of the network.

Key features

• 16-Port Multi-Gigabit Layer 2 Managed Switch, 4 x SFP+ Uplink Ports
• 1 x fixed power supply module (Rated voltage range: 100 V AC to 240 V AC)
• Maximum power consumption
• No PoE load: ＜40W
• Full PoE load: ＜460W

Check the required PoE standard and total power budget before connecting equipment.

Model: LS2P-16MG4XS-HP.

Power requirements and PoE budget

• Power consumption: 40 W without PoE load; 460 W at full PoE load.
• Power input: 100–240 V AC, 50/60 Hz.
• PoE output: 370 W total. Ports 1–4 support PoE++; ports 5–16 support PoE/PoE+. Confirm the required per-port rating before selecting a high-power PTZ.

The PoE output budget is separate from the unit’s own power use. Check the required PoE standard, each port’s limit, and the total load before connecting equipment.

Manufacturer power specifications
