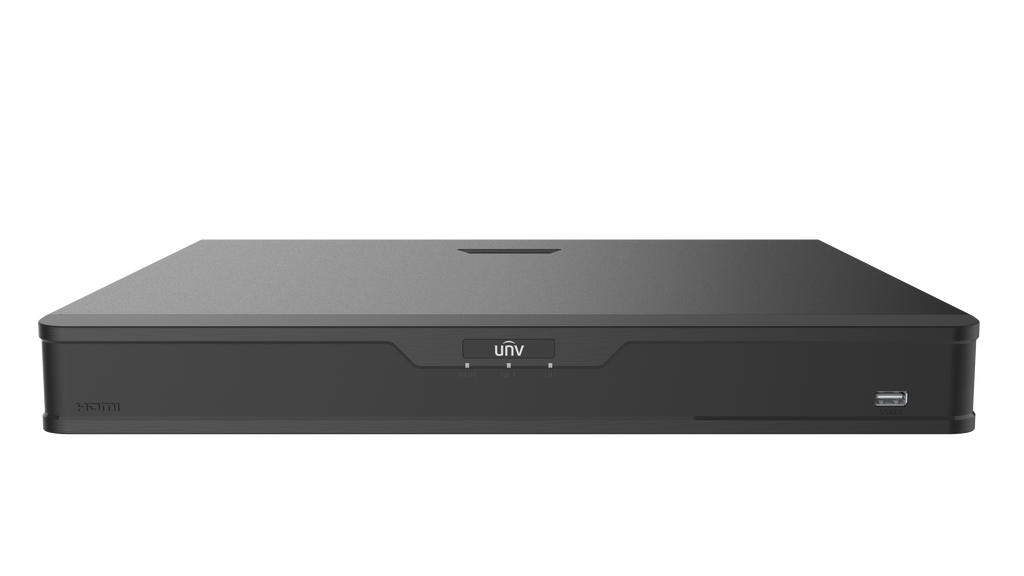

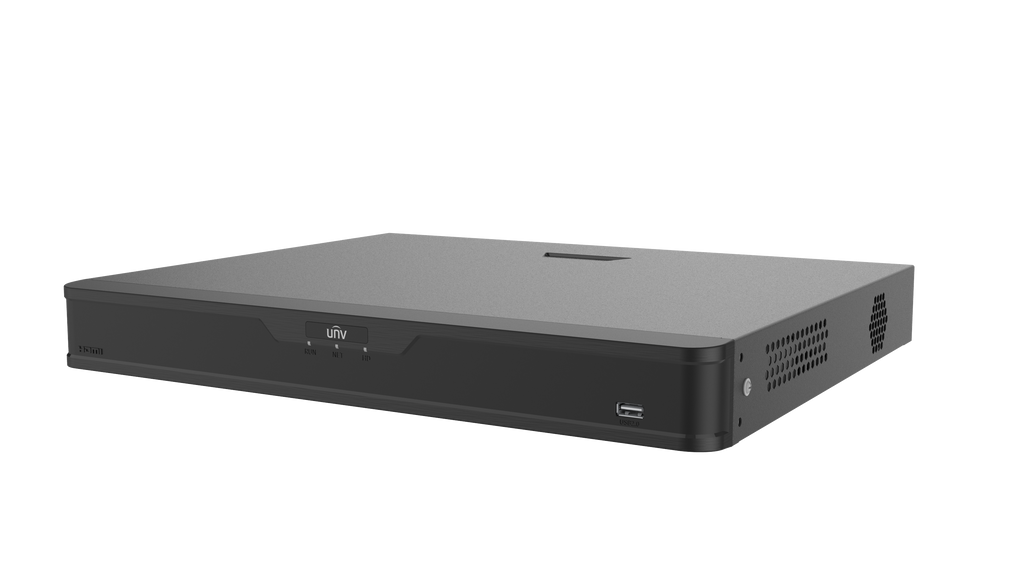

Uniview 16-Channel IQ PoE NVR | NVR302-16B-P16-IQ
No hard drive
$995.00
Skip to product information
Uniview 16-Channel IQ PoE NVR | NVR302-16B-P16-IQ
$995.00
Compatible accessories
Keep up to 16 cameras organized in one place with the Uniview NVR302-16B-P16-IQ. Built-in PoE simplifies camera connections, while IQ analytics help you focus on useful events when reviewing footage.
Key features
- 16 IP camera channels with 16 built-in PoE ports.
- Up to 12MP recording; 4K HDMI output and VGA.
- 2 SATA hard-drive bays; choose an installed surveillance drive below.
- PoE: 240W total budget, maximum 30W per port; IEEE 802.3af/at.
- Bandwidth: 160 Mbps incoming; 128 Mbps outgoing.
- IQ recorder-side analysis: 2-channel intrusion analysis or 4-channel Ultra Motion Detection. Analytics availability depends on camera compatibility, resolution, firmware and operating mode.
Storage and connections
No hard drive is the default. Select a drive to have one installed; a hard drive is required to save recordings. Options run from 2TB to 10TB. Recording duration depends on camera count, bitrate and recording schedule. Includes a 6-foot HDMI cable and a 3-foot Cat6 cable.
Check each camera’s maximum power draw against both the per-port limit and total PoE budget. High-power PTZ cameras may require a separate compatible injector.
