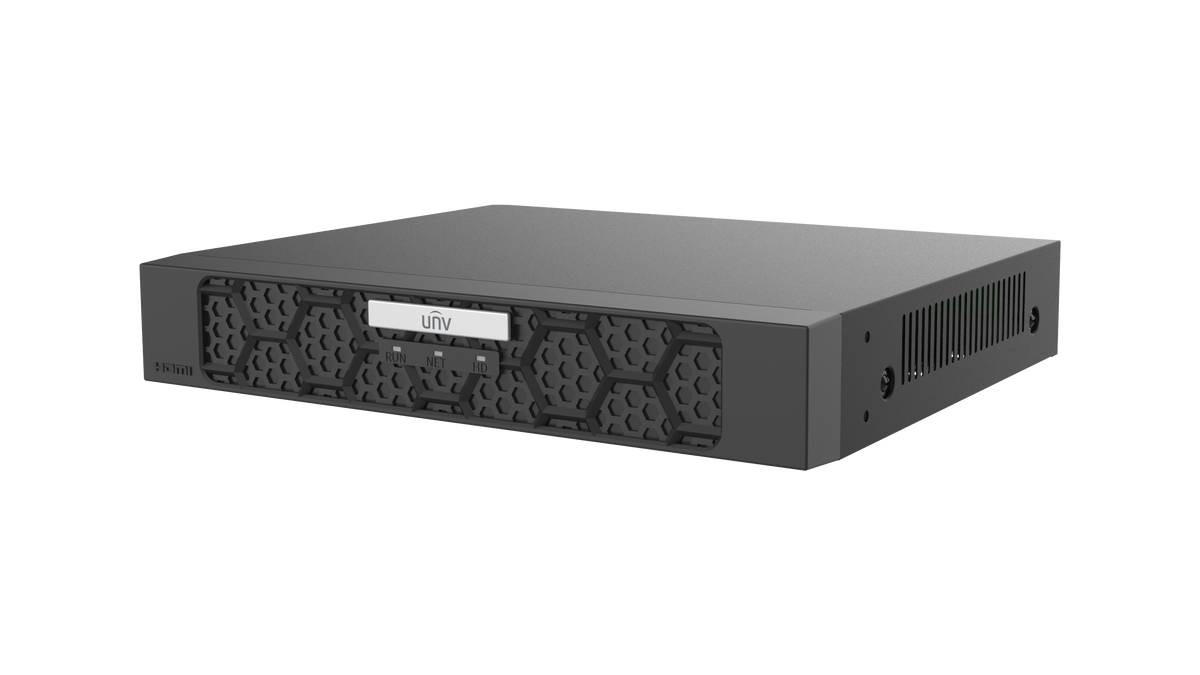

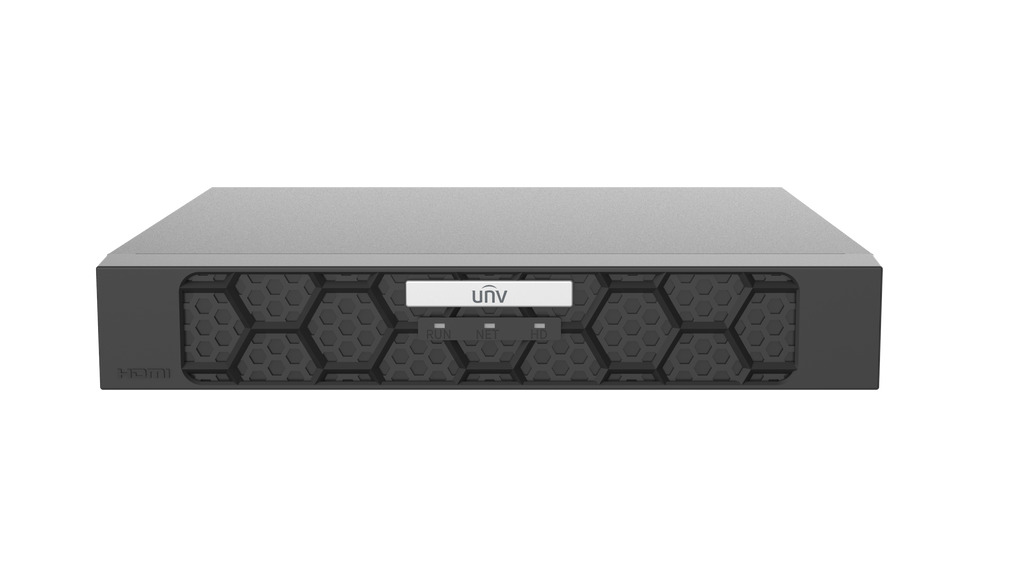

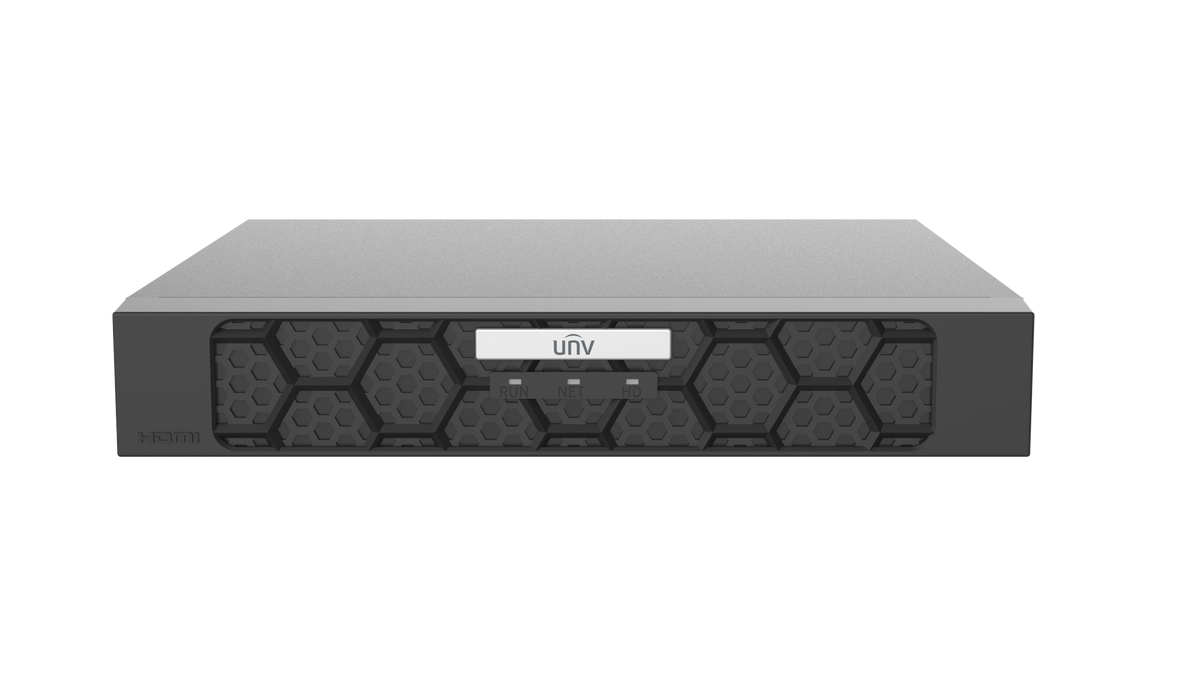

Uniview 8-Channel No-PoE NVR | NVR501-08B
Uniview 8-Channel No-PoE NVR | NVR501-08B
Compatible accessories
The Uniview NVR501-08B brings up to eight IP cameras together in one compact recorder. It's a practical choice when your cameras already connect through a separate PoE switch or have their own power supplies.
No built-in PoE: this recorder does not power cameras. Use a compatible PoE switch, PoE injector, or separate camera power supply. Camera power equipment is sold separately.
Key features
- 8 IP camera channels with recording resolutions up to 16MP.
- 0 PoE ports; 0W PoE output. Cameras connect through your network.
- 4K HDMI output at 30Hz plus VGA; simultaneous monitor outputs.
- 80 Mbps incoming / 64 Mbps outgoing bandwidth.
- Ultra 265, H.265 and H.264 compression and up to 8-channel synchronous playback.
- One SATA drive bay for local surveillance storage.
- Camera-side smart events with compatible cameras. This is not an IQ-series recorder; analytics depend on the connected camera.
- Connectivity: one 10/100 Mbps Ethernet port, USB 2.0 and USB 3.0.
- Power: 12V DC, 2A; recorder consumption ≤6W without a hard drive.
Choose your storage
No hard drive is the default. Select an optional 2TB–10TB surveillance drive to have it installed. A hard drive is required to save recordings. Recording duration depends on your camera count, bitrate and recording schedule.
Included with your recorder
A 6-foot HDMI cable and a 3-foot Cat6 network patch cable are included. Cameras, camera cabling and external PoE equipment are sold separately.
